Products&ServicesHome > Products&Services > Manufacturing service
BQC is a reliable electronic contract manufacture factory, which has dedicated in EMS service about 16 years with extensive experience. Our factory has advanced PCBA manufacture equipments, has committed to help customer to improve competitiveness, shorter lead time and better quality. Our producing is full of flexibility and equipments are high performance. With these advantages, we could produce all kinds of electronic products.

In the EMS industry,BQC is more than a PCBA manufacturer. We firmly grasp the two key qualities of electronic products:Advanced equipment and satisfied manufacturing capabilities.

For manufacturing services,we have the following services,

1.Our pcba assembly services (Meet the requirement of RoHS, Reach):
1) PCB layout services
2)Single and double-sided PCB
3) Multilayer PCB, up to 16 layers
4) Provide RoHS, Reach,UL PCB bare boards
5) Printed circuit board (PCB), rigid board/flexible board manufacturing services
6) Laser Stencil
7)Both small and big order of pcba manufacturing
8)Provide PCBA service from prototyping to mass production
9) Electrical Test
10)Selective wave soldering
11) undertake a small number of multi-layer high-precision high-complicate board manufacturing and assembly service

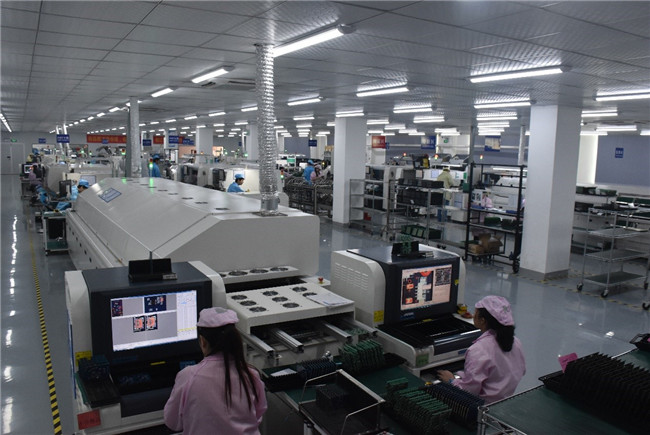

2. SMT Assembly service
1)Capacity
SMT productivity: 12 complete automatic SMT production lines, 14 million points/day

2) SMT euipments:
Automatic Loader: 12 sets;
automatic solder paste printing machines 12sets
; SPI (Solder paste inspection) machine: 4 sets
SMT machine: 25sets (YMAHA YSM20 high-speed machine 9sets, JUKI FX-3RAL high-speed machine 5sets, JUKI medium-speed machine 11sets);
Reflow oven: 6 sets;
First Article Inspection Test Machine: 2 set;
AOI tester: 13sets (Shenzhou ALD515 11sets , Zhenhua Xing A410 2sets);
X-RAY 8200 testing machine 1set
Stencil cleaner: 1 set;
Ovens 2sets;
Ultrasound cleaner EN-CSBQXJ-001EN-CSBQXJ-002EN-CSBQXJ-0033 3sets;
PCBA Cutting Machine 1 set;
BGA rework machine 1 set;
3)Following Components Package That We Could Provide
01005, 0201, 0402,0603,0805,1206,2512
QFP,QFN,CSP,TSOP,SOJ,BGA,uBGA,etc

4)Mounting Operational Capacity Parameters
PCB layer: 1-16 layers;
PCB material: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, FR-1, FR-2,alumium bloards;
PCB thickness: 0.2mm-7.0mm;
PCB dimension: 50*50mm-500*500mm;
Copper thickness: Min:0.5oz; Max: 4.0oz;
Chip accuracy: laser recognition ±0.05mm; image recognition ±0.03mm;
Component size: 0.6*0.3mm-33.5*33.5mm;
Component height: 6mm(max);
Pin spacing laser recognition over 0.65mm;
High resolution VCS 0.25mm;
BGA spherical distance: ≥0.25mm;
BGA Globe distance: ≥0.25mm;
BGA ball diameter: ≥0.1mm;
IC foot distance: ≥0.2mm;

5)Quality control:
Every time transfer the SMT production line, the first article need do the testing 100% AOI test, X-Ray test and function test before shipment to ensure no defective products leave from factory.





6) SMT test euipments





3. DIP assembly services
1)Capacity
2 THT production lines, 0.5 million points/day

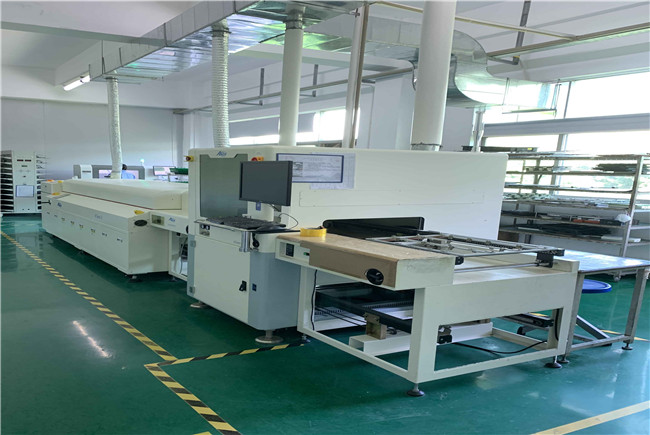

2)DIP equipment
DIP Production line

Wave soldering machine

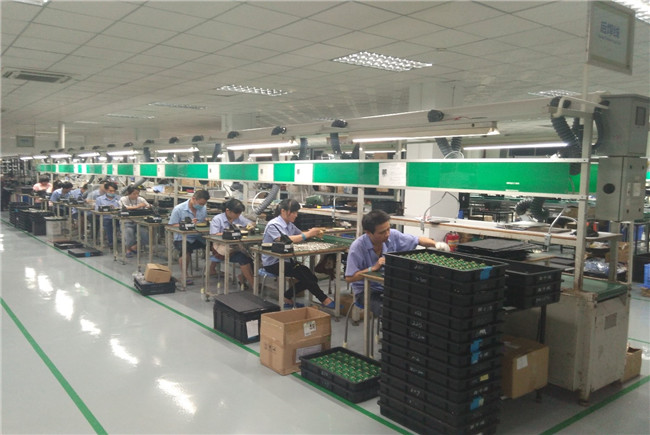

4. Hand soldering Service
1)Capacity
3 hand soldering lines , 0.3 million points/day

Hand soldering lines
Electric soldering iron

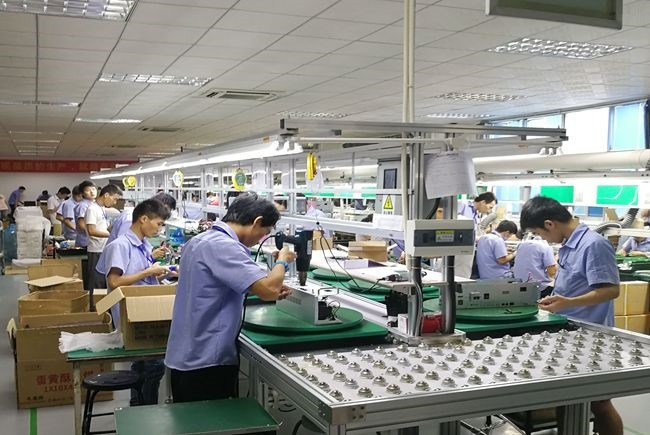

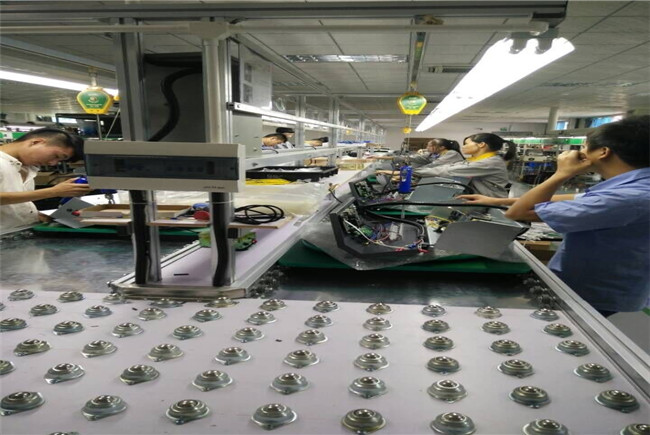

5. Box building/Case assembly service
1) Capacity
3 Final assembly lines, 15000pcs /day
Complete machine assembly + Color Box packaging
Final assembly:
plastic case/ parts assembly
metal box/parts building,
cable assembly
color box packaging


6. one conformal coating spraying room


7. DIP workshop test
1) Test Capacity : ICT test + functional test



8.8. Life test
High and Low Temperature test;Vibration Test ;Salt Spray Test ;Waterproof Test
1.High and Low Temperature test

2.Vibration Test

3.Salt Spray Test

4.Waterproof Test
